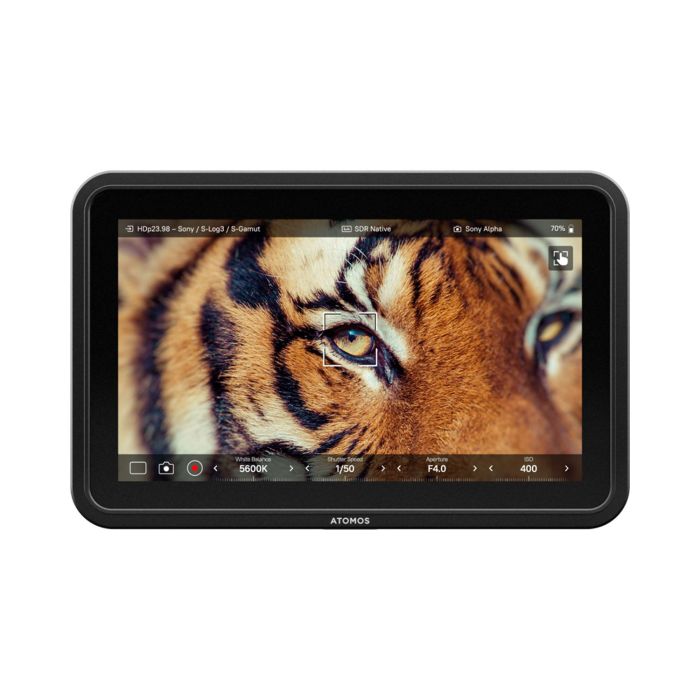

Atomos Shinobi 7 II

Atomos Shinobi 7 II is a 7-inch 2800nit touchscreen monitor with HDMI input & output, camera control, touch to focus, and advanced exposure and anamorphic workflow tools.

Key Features

• 2800nit HDR touchscreen display
• 1 x HDMI input and 1 x HDMI output
• Comprehensive professional monitoring tools including EL Zone™ false color, focus peaking, waveform and more
• 10+ stops of dynamic range in real time from Log/PQ/HLG signals
• Camera control for compatible cameras
• Touch to focus for compatible cameras
• Built-in 3D LUT support
• Supports on-device calibration (no computer required)
• Powered by USB-C, NP-F battery or DC via battery eliminator

Camera Control

Using intuitive, on-screen sliders you can adjust white balance, lens aperture, shutter speed/angle and ISO. A red edge display indicates when the camera is recording internally, whether triggered by the camera or from the Shinobi II, 7 II, or 7 RX. Both models can control most Canon, Fujifilm, Nikon, Panasonic, and Sony mirrorless cameras over USB-C, and all Z CAM E2 series models (LANC cable required, purchased separately).

Touch to Focus

Tap the Shinobi II, 7 II, or 7 RX touchscreen to have the camera automatically focus on your point of interest. Touch to focus takes advantage of camera focus modes such as focus tracking for effortless control and sharp images. Available with compatible cameras only.

Professional monitoring tools at your fingertips

All Shinobi models offer a suite of professional monitoring tools, all with simple one-touch operation, for focus, framing, and exposure. Tools include focus peaking, zoom (4:1, 2:1, 1:1), zebra, false color (ARRI and EL Zone™ colorized exposure modes only available on Shinobi II, 7 II, and 7 RX models), frame guides, SMPTE safe areas, grid markers, waveforms, an RGB parade, vectorscope, multi-view analysis, and flexible 3D/1D LUT support with profile and preset options (including .cube file uploads via SD card). Shinobi II, 7 II, and 7 RX provide anamorphic de-squeeze monitoring (2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x) to correct the ratio for anamorphic lens setups.

EL Zone

All Shinobi monitors, with the exception of Shinobi GO, support EL Zone, a professional false color exposure tool that helps you see exactly how bright or dark different parts of your image are. Unlike traditional false color systems that use rough IRE ranges, EL Zone assigns specific colors to exact exposure values—based on stops of light, in the same way your camera sees exposure. It’s a precise and consistent way to expose your image correctly every time.

LUTS

All Shinobi monitors receive LOG signals from the camera and offer real‑time LUT (Look-Up Table) preview to approximate what the final graded image will look like in Rec.709. Custom LUTs (.cube files) can be loaded from an SD card and used in conjunction with the Shinobi’s built‑in monitoring tools for precise exposure control.

High brightness

Shinobi 7 II has an ultra-bright 2800nit display, both of which are viewable even in bright sunlight.

High Dynamic Range

You can view 10+ stops of dynamic range from Log/PQ/HLG signals. Shinobi’s unique HDR monitoring features help you simplify the complexities of shooting Log and HDR, because it is possible to replicate post-production workflows when it matters most – while you are shooting.

High fidelity

Calibration is the key to a trustworthy monitor. Shinobi II, 7 II, and 7 RX monitors can be calibrated with Calibrite Display Pro HL / Plus HL probe, and using the Atomos Calibrator app, for ongoing accurate HDR and Rec.709 monitoring. Accurate monitoring ensures reliable results.

HDMI

Shinobi 7 II and Shinobi 7 RX, have HDMI input and output ports, to facilitate video loop-through if required.

USB-C

All Shinobis have a USB-C port, which can either be used to power the device or, in the case of Shinobi II, Shinobi 7 II and Shinobi 7 RX, to control a compatible camera, or connect an external calibration device.

Locking cables

Atomos has developed a unique and rugged locking ecosystem to maintain a secure grip on connected HDMI and USB-C cables. All Shinobi monitors are supplied with a special bracket to facilitate this.

Power

Shinobi 7 II supports USB-C PD, NP-F Batteries and a battery eliminator is available as a accessory.

What's in the box

• Shinobi 7 II
• USB-C 2.0 cable
• HDMI & USB-C locking cable adapter
• Quick Start Guide
