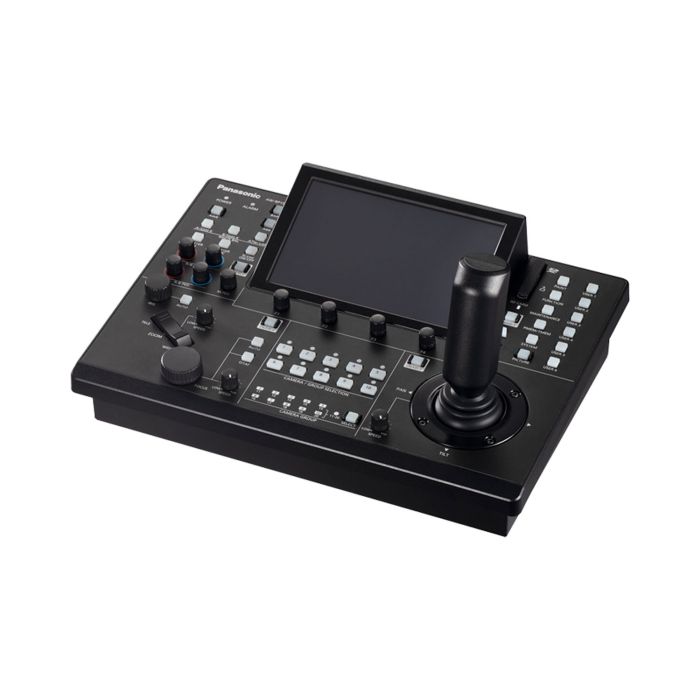

Panasonic AW-RP150GJ5 PTZ Control Panel

Panasonic AW-RP150GJ5 PTZ Control Panel Connectivity and control

The controller connects to PTZ cameras over IP (100BASE-TX with PoE+) or via RS-422 for serial control. Up to 200 cameras can be addressed on an IP network, and up to five cameras over RS-422. Ten direct camera-select buttons and up to twenty camera groups streamline multi-room or multi-studio setups. An SD card slot allows backup and cloning of presets and system settings across controllers or camera fleets.

Monitoring and workflow

A 3G-SDI input feeds the built-in 7-inch WVGA display for return video monitoring, while an ACTIVE THRU 3G-SDI output can pass the same signal downstream. Tally and GPIO terminals support integration with switchers and automation. Power can be supplied via 12 V DC (XLR 4-pin) or PoE+, and the unit’s menu provides seven levels of pan/tilt speed adjustment to match different show styles.

Key features

• Integrated 7-inch touchscreen GUI monitor (WVGA 800×480)

• One-hand joystick with seesaw rocker for zoom/focus

• Control up to 200 cameras over IP; up to 5 cameras over RS-422

• Ten camera-select buttons; up to 20 camera groups (10 cameras per group)

• Preset memory: 100 presets; tracing memory per camera up to 5 minutes, 10 traces per camera

• Network/Power: 100BASE-TX with PoE+; 12 V DC input (XLR 4-pin)

• Serial control: RS-422 (RJ-45), up to 1000 m cable length (Cat5e or better, shielded)

• Video I/O: 3G-SDI IN (BNC); ACTIVE THRU 3G-SDI OUT (BNC)

• Tally/GPIO: D-sub 25-pin (Tally In x10, GPI x6, GPIO configurable I/O), plus separate TALLY OUT (open collector)

• SD card slot (SDHC/SDXC) for scene files and system backups

• Pan/tilt speed adjustment: 7 levels; tally LED colors: green/red

• Approx. dimensions: 342 × 178 × 245 mm (W×H×D, excluding protrusions)

• Approx. mass: 3.2 kg
