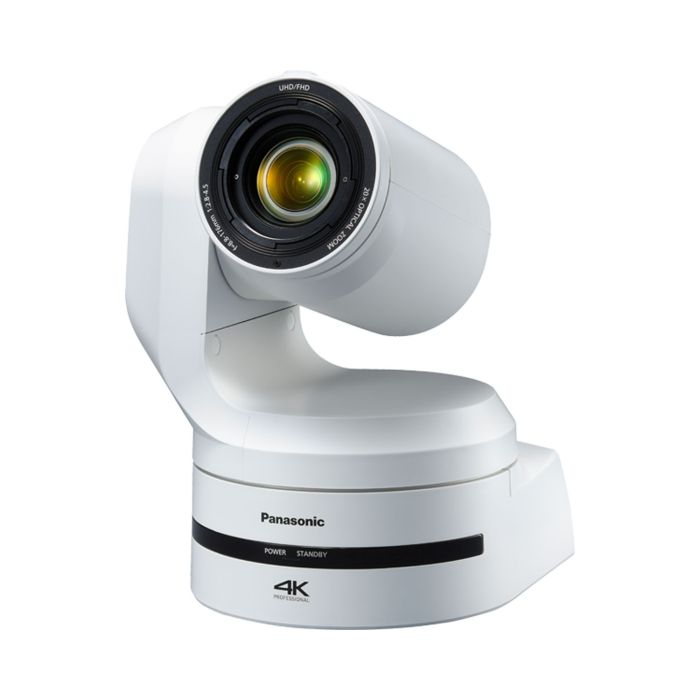

Panasonic AW-UE150AWEJ 4K Integrated PTZ Camera, White

Panasonic AW-UE150AKEJ 4K Integrated PTZ Camera Imaging and outputs

The integrated lens covers 24.5–490 mm (35 mm equivalent) with 20x optical zoom, plus i.Zoom for extended range. The horizontal angle of view spans 75.1° at the wide end to 4.0° at tele, supporting coverage from wide rooms to distant subjects. Output formats include UHD up to 2160/59.94p or 50p and a full range of HD modes. The camera provides HDMI 2.0 (4:2:2 10-bit), 12G-SDI, 3G-SDI, a dedicated HD monitor output, and an SFP+ optical fiber port that mirrors the 12G-SDI feed. Genlock (black burst/tri-level) is available for system synchronization, and a 3.5 mm mic/line input allows audio embedding.

Network, control, and PTZ performance

The camera streams over IP in JPEG (MJPEG), H.264, and H.265 at resolutions up to 3840×2160, with selectable frame rates and bit rates for 50/60 Hz regions. Control is available over IP and RS-422, and the unit supports PoE++ power in addition to 12 V DC. The pan/tilt head offers a ±175° pan range and a −30° to 210° tilt range, with speeds from 0.08°/s for precise moves up to 180°/s in high-speed mode. Operating noise is NC35 or less. Minimum illumination is 2 lx (F2.8, 59.94p, 50 IRE, 42 dB), and standard sensitivity is F9 at 2000 lx. Gamma options include HLG and Filmlike/Video/Film Rec profiles. The camera can be installed on a desktop or suspended; the black finish corresponds to the K variant.

Key features

• 1-type 4K MOS sensor

• UHD output up to 2160/59.94p and 50p; extensive HD formats including 1080/59.94p, 50p, PsF, interlaced, and 720p

• 20x optical zoom; i.Zoom 24x (UHD) / 32x (FHD); 10x digital zoom

• 35 mm-equivalent focal range: 24.5–490 mm

• Horizontal angle of view: 75.1° (wide) to 4.0° (tele)

• HDMI 2.0 4:2:2 10-bit; 12G-SDI; 3G-SDI; HD monitor out; SFP+ optical fiber (same signal as 12G-SDI)

• Genlock input (black burst / tri-level)

• IP streaming: JPEG (MJPEG), H.264, H.265; resolutions up to 3840×2160

• Audio embedding via 3.5 mm stereo mic/line input (plug-in power selectable)

• Pan/tilt: ±175° pan; −30° to 210° tilt; 0.08°/s to 60°/s (normal), up to 180°/s in high-speed mode

• Minimum illumination 2 lx; standard sensitivity F9 at 2000 lx; S/N 60 dB or more

• Power via PoE++ or 12 V DC; LAN and RS-422 control

• Approx. dimensions 213 × 267 × 219 mm; mass approx. 4.2 kg; desktop or suspended installation.
