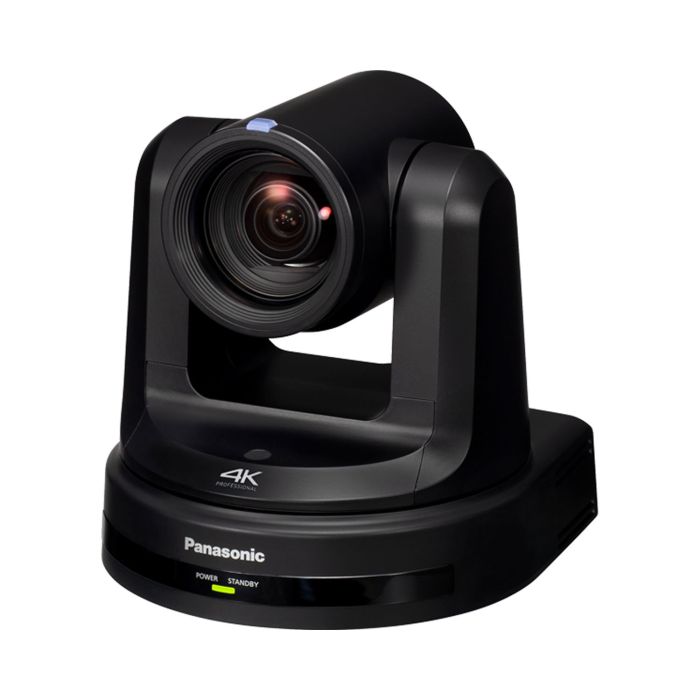

Panasonic AW-UE20KE 4k PTZ Camera, Black

Panasonic AW-UE20KE 4K PTZ Camera

The integrated lens spans a 35 mm–equivalent focal range of approximately 26.4–316.4 mm with a horizontal angle of view from about 71° (wide) to 6° (tele). UHD up to 2160/29.97p or 25p is available via HDMI. HD formats up to 1080/59.94p or 50p are available via 3G-SDI. The USB-C device port supports UVC/UAC operation; video is output as YUV (uncompressed), MJPEG, or H.264 depending on the selected mode. A 3.5 mm mic/line input with plug-in power allows audio embedding on HDMI/IP and USB workflows.

Network, control, and PTZ performance

The camera streams over IP in MJPEG, H.264, and H.265 at resolutions up to 3840×2160, with frame-rate options for both 50 Hz and 59.94/60 Hz regions. Protocols include RTSP/RTP, RTMP/RTMPS, and IPv4/IPv6 control services; NTP is supported for time sync. Control is available over IP, RS-422, and RS-232C. The unit supports PoE+ for single-cable power and data. The pan/tilt head offers a ±170° pan range and a −30° to +90° tilt range, with manual speeds from 0.1°/s to 100°/s and preset moves up to 200°/s.

Key features

• 1/2.8-type 4K MOS sensor; approx. 8.46 MP effective

• 12x optical zoom; i.Zoom 1.33× (UHD/FHD); digital extender 1.4×/2×

• 35 mm–equivalent focal length approx. 26.4–316.4 mm; horizontal angle of view ~71° to 6°

• HDMI output: UHD 2160/29.97p, 25p; HD 1080/59.94p, 50p, 59.94i/50i, 29.97p/25p; 720p support

• 3G-SDI output: up to 1080/59.94p or 50p (Level-A)

• USB-C device mode (UVC 1.1 / UAC 1.0); YUV, MJPEG, or H.264 output

• IP streaming: MJPEG, H.264, H.265 up to 4K; RTSP/RTP and RTMP/RTMPS

• 3.5 mm stereo mic/line input with selectable plug-in power; audio embedding on HDMI/IP/USB

• Pan/tilt range: pan ±170°, tilt −30° to +90°; manual 0.1–100°/s, preset up to 200°/s

• Power and control via PoE+ or 12 V DC; LAN 100/1000BASE-T; RS-422 (RJ-45) and RS-232C (Mini-DIN)

• Approx. dimensions 165 × 176 × 176 mm; mass approx. 1.9 kg
